Rotary Control Valves Supplier / Distributor in South Africa
Fluid Tech is a specialist Rotary Control Valves Supplier in South Africa, providing industrial valve solutions for demanding process applications across mining, minerals processing, pulp and paper, petrochemical, power generation, chemical processing, water treatment and other process industries.
At the centre of our rotary control valve offering is PRESSOFLEX by Fluid Tech – a high-performance rotary control valve developed for applications where flow capacity, accurate modulation, tight shutoff and resistance to wear are critical.
Selecting the correct control valve affects far more than the amount of fluid passing through a pipeline. Valve sizing, flow characteristics, rangeability, shutoff performance, actuator response and material selection can all influence process stability, operating efficiency and plant reliability.
Fluid Tech works with engineers, maintenance teams and process specialists to provide rotary control valve solutions suited to real operating conditions.
Need Vales, Valve Repairs / Reconditioning? Call us on 082 414 6756

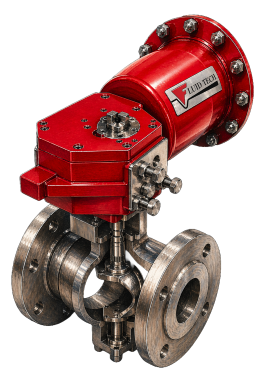

PRESSOFLEX Rotary Control Valves from Fluid Tech
PRESSOFLEX is Fluid Tech’s rotary control valve solution for demanding industrial flow control applications.
Unlike designs that operate across a restricted rotational range, PRESSOFLEX operates across a full 90° stroke. This gives the valve a wider usable control arc between fully closed and fully open positions and supports controlled valve movement throughout its operating range.
The valve combines several important process control characteristics:
- Full 90° valve stroke
- Class VI shutoff
- High flow coefficient (Cv)
- Up to 500:1 published rangeability
- Pressure-assisted flexible seat design
- 316 stainless steel construction
- Tungsten Carbide trim
- Spring-return rolling diaphragm actuation
- Strong abrasion and erosion resistance
These characteristics make PRESSOFLEX suitable for industrial processes where conventional valve designs may struggle with restricted flow capacity, seat leakage, abrasive media or changing process conditions.
A Rotary Control Valves Supplier Focused on Process Performance
A rotary control valve forms part of the overall process control loop. Its job is not simply to open or close a pipeline.
During normal operation, the control valve may continuously change position in response to signals from the process control system. These movements regulate variables such as:
- Flow
- Pressure
- Temperature
- Level
- Process throughput
Poor control valve selection can cause unstable flow, excessive pressure drop, valve hunting, premature trim wear, leakage or poor process response.
As an industrial Rotary Control Valves Supplier, Fluid Tech can assist customers with valve selection based on the process conditions rather than simply replacing an existing valve with another valve of the same nominal size.
Factors such as required Cv, differential pressure, process media, temperature, solids content, shutoff requirements and control range should all be considered.
High Cv Rotary Control Valve Performance
Cv is an important measurement when selecting process control valves because it represents the valve’s flow capacity under defined conditions.
A higher Cv can allow more flow through a valve of a given nominal size.
Fluid Tech’s published PRESSOFLEX data shows a Cv of 540 for the 4-inch valve configuration. The company’s comparison data places a typical 4-inch rotary globe valve at approximately 230 Cv. Fluid Tech notes that these figures relate to the 4-inch valve body and that test conditions are available on request.
Higher available flow capacity may provide several engineering advantages depending on the application.
It can help reduce unnecessary restriction through the valve, provide additional flexibility during valve sizing and potentially allow the required process flow to be achieved without increasing the nominal valve size.
This can be particularly valuable when upgrading an existing industrial plant where changing pipework, supports and surrounding infrastructure may significantly increase the scope of a project.
Valve sizing should, however, always be based on the specific operating conditions rather than Cv alone.
Full 90° Stroke for Better Control Resolution
PRESSOFLEX uses a full 90-degree rotational stroke from closed to fully open.
A broader rotational movement gives the actuator more angular travel across the complete control range. This can provide improved usable resolution between valve positions and support accurate modulation as process conditions change.
Industrial processes rarely remain at one constant flow rate.
Production requirements change. Pressure fluctuates. Slurry concentration can vary. Pumps may operate differently under changing plant loads.
The control valve therefore needs to respond consistently throughout its usable operating range.
PRESSOFLEX was developed to provide controlled movement across the full valve stroke rather than compressing the control action into a shorter rotational range.
Our Range of Control Valves
Fluid Tech extends its commitment to quality with the inclusion of Zook in its lineup. Zook is a trusted brand in pressure and safety relief solutions. As a supplier of Zook products, we ensure that our customers in South Africa have access to reliable and high performance rupture disks with superior quality.
Zook product range:
- Reverse Acting Disks
- Forward Acting Disks
- Holders
- Graphite Disks
- Sanitary Disks
- Transportation / Railcar Disks
- Ultra-Low & Bi-Directional Disks
- Burst Sensors & Indicators
- Burst Plugs
- Custom Solutions
- Accessories
- Explosion Vents
Our in-house brand, Fluid Tech, reflects our dedication to providing customised solutions tailored to the unique needs of our clients. Fluid Tech control valves undergo rigorous testing to ensure they meet the highest industry standards. By choosing Fluid Tech as your Control Valve Supplier / Distributor in South Africa, our customers in South Africa benefit from a combination of quality, reliability, and cost-effectiveness.
Fluid Tech product range:
- Segmented Ball Valves
- API 6 D Metal Seated Zero Leakage Ball Valves
- API 609 Metal Seated Zero Leakage Triple Eccentric Butterfly Valves
- Knife Gate Valves
Choosing the Correct Industrial Rotary Control Valve
No single control valve specification is suitable for every application.
Before selecting a rotary control valve, engineers should consider the complete process duty, including operating and maximum flow rates, inlet and outlet pressures, temperature, process media, solids content, required shutoff class and expected control range.
Valve selection should also consider long-term maintenance requirements.
A valve that initially appears less expensive can become costly if erosion, seat damage or poor sizing results in repeated maintenance or process instability.
Fluid Tech can assist with selecting a rotary control valve configuration suited to the actual operating conditions of the plant.
Why Choose Fluid Tech as Your Rotary Control Valves Supplier?
Fluid Tech supplies industrial process valve solutions with a strong focus on performance, application requirements and technical support.
Our PRESSOFLEX rotary control valve gives customers access to a Fluid Tech solution combining high flow capacity, Class VI shutoff, full 90° travel, broad rangeability and abrasion-resistant construction.
Customers can also rely on Fluid Tech for ongoing valve inspection, maintenance, calibration and repair support throughout the working life of their control valves.
Whether you are specifying valves for a new project, replacing an unreliable control valve, increasing plant capacity or looking for improved performance in abrasive service, our team can assess the application and help identify a suitable solution.
Need Vales, Valve Repairs / Reconditioning?
Your Rotary Control Valves Supplier in South Africa
For industrial plants that need accurate flow regulation, reliable shutoff and durable valve construction, PRESSOFLEX provides a strong rotary control valve option from Fluid Tech.
Speak to Fluid Tech about your operating conditions, required Cv, pressure differential, process media, shutoff requirements and control range.
Our team can assist with rotary control valve supply, application support, servicing, repairs and calibration for industrial process applications throughout South Africa.
For more information, view the PRESSOFLEX rotary control valve range from Fluid Tech – PRESSOFLEX Rotary Control Valves
For maintenance and repair requirements, see Fluid Tech’s control valve service offering – Control Valve Service and Repairs
A key change I made for accuracy is that I did not repeat the site’s statement that PRESSOFLEX is “the only” Class VI rotary control valve with a full 90° stroke. That is a broad market-wide exclusivity claim and would require much stronger independent substantiation. The measurable PRESSOFLEX specifications themselves remain strong enough for the sales message without relying on that claim.
Fluid Tech is committed to providing the highest quality rotary control valves to meet your specific needs. The PRESSOFLEX by Fluid Tech, with its advanced design and exceptional performance, ensures that you have the best solutions for precise and reliable fluid control. Explore our offerings to find the perfect rotary control valve for your application and experience the benefits of superior control and efficiency.
Class VI Shutoff for Demanding Process Applications
Control valves often need to perform two different tasks: accurately regulate flow while operating and provide reliable sealing when closed.
PRESSOFLEX is designed for Class VI shutoff.
The valve uses a pressure-assisted flexible seat principle. Process pressure acts on the flexible seat and assists the sealing action against the ball segment, supporting tight shutoff under suitable operating conditions.
This can be particularly valuable where unwanted leakage may result in:
- Loss of process media
- Cross-contamination
- Reduced process stability
- Chemical exposure
- Unnecessary waste
- Additional maintenance requirements
Shutoff performance should always be considered as part of the full valve specification, particularly on critical process lines.
500:1 Rangeability for Changing Flow Requirements
Rangeability describes the relationship between the maximum and minimum controllable flow through a valve.
Fluid Tech publishes rangeability of up to 500:1 for PRESSOFLEX. Combined with the valve’s full 90° stroke, this gives engineers a broad control envelope for processes that need to operate across significantly different flow conditions.
This can be useful in plants where throughput varies according to production requirements, operating modes or process demand.
A wider usable control range can help the valve maintain more stable process control when operating conditions move between lower and higher flow requirements.
Rotary Control Valves for Abrasive and Aggressive Media
Valve wear is a major consideration in industries handling slurry, suspended solids, fibres, scale and other abrasive process media.
Repeated exposure to abrasive particles can gradually damage valve trim, seating surfaces and flow paths. As this wear increases, valve performance, shutoff and control accuracy may deteriorate.
PRESSOFLEX uses 316 stainless steel together with Tungsten Carbide trim. Fluid Tech specifies the Tungsten Carbide at approximately 1,500 HV hardness, providing strong resistance to abrasion and erosion.
This construction makes PRESSOFLEX particularly relevant to applications where valve durability directly affects maintenance intervals and plant availability.
Industrial Applications for PRESSOFLEX Rotary Control Valves
Fluid Tech supplies rotary control valve solutions for industrial processes where dependable regulation and valve durability are important.
Typical PRESSOFLEX applications include:
- Mining and minerals processing
- Abrasive slurry handling
- Pulp and paper plants
- Petrochemical processing
- Refineries
- Power generation
- Chemical processing
- Water treatment
- Wastewater treatment
- General industrial process plants
These industries can expose process valves to demanding combinations of pressure, solids, corrosion, erosion and changing flow conditions. PRESSOFLEX has been developed specifically with these types of industrial environments in mind.
Rotary Control Valve Actuation
A control valve cannot perform properly without dependable actuation.
PRESSOFLEX uses a true 90° spring-return rolling diaphragm actuator designed to support the complete rotational movement of the valve.
Correct actuator sizing is important because the actuator must provide sufficient force and reliable positioning across the required operating conditions.
The actuator, positioner and valve body should therefore be treated as one control assembly rather than separate components.
Incorrect actuator setup, insufficient force or poor positioner calibration can affect response time, shutoff and control stability even when the valve body itself is in good condition.
Rotary Control Valve Service, Repairs and Technical Support
Fluid Tech provides more than new valve supply.
Our team also supports industrial customers with control valve service, repairs, inspection, fault finding and calibration.
Depending on the valve and its condition, Fluid Tech’s services can include:
- Control valve inspection and assessment
- Fault finding
- Valve stripping and cleaning
- Trim and seat inspection
- Packing replacement
- Seat leakage assessment
- Actuator inspection and repairs
- Diaphragm and seal replacement
- Positioner setup and calibration
- Stroke testing
- Functional testing
- Valve upgrade recommendations
Fluid Tech’s repair approach considers the complete valve assembly, including the valve body, trim, actuator and positioner.
This helps customers determine whether an existing valve should be serviced, repaired, upgraded or replaced.
Need Vales, Valve Repairs / Reconditioning? Call us on 082 414 6756
Get the best Rotary Control Valves you need from Fluid Tech
Rotary control valves are vital components in numerous industries, offering precise and reliable flow control to enhance system performance and safety. At Fluid Tech, we provide a range of rotary control valves to meet the specific needs of your applications. Whether you are in chemical processing, oil and gas, water treatment, pharmaceuticals, power generation, or food and beverage, our valves deliver the quality and reliability you need for optimal operation. Explore our offerings and discover how Fluid Tech’sn rotary control valves can improve your fluid management systems.
About Fluid Tech
Fluid Tech: Your leading supplier of instrumentation and control valves in South Africa. With a commitment to excellence, we offer a comprehensive range of advanced products to meet the diverse needs of industries across the region.
Offering our own line of Fluid Tech Valves, meticulously engineered to deliver precision and performance in every application. With a focus on customer satisfaction and innovation, Fluid Tech is your trusted partner for all your valve needs in South Africa.
