Fluid Tech offers world class metal to metal seat

Trunnion mounted ball valves with Zero Leakage.

Our FT Q range of ball valves are:

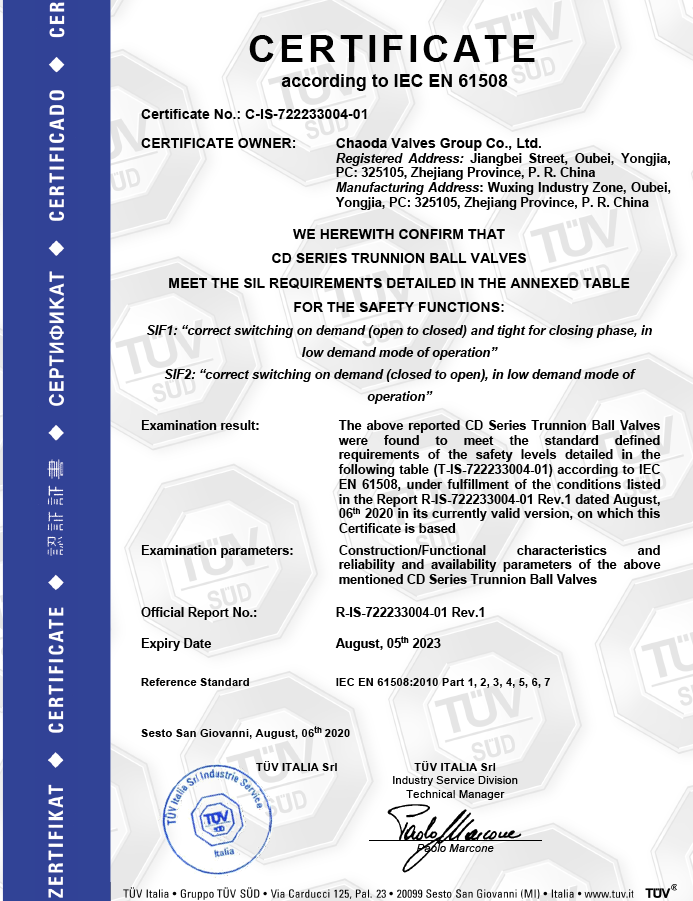

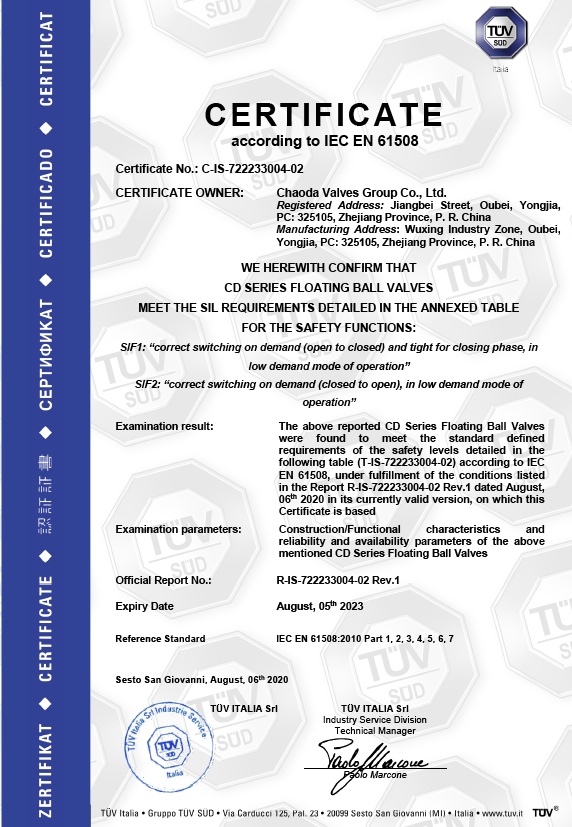

  • SIL 3 and API 6D certified.
  • SHELL MESC Approved
  • EN1024 3.1 and 3.2 Certification as standard

Sizes from:  ½” to 40” (DN15 to DN1000)

Pressure Rating up to:  ASME 4500# (PN420)

FT HQ        Fully Welded Ball Valve

FT DQ        Cryogenic Ball Valve

FT BQ        Jacketed Ball Valve

FT WQ       Bellow Seal Ball Valve

FT ZQ        Lock Hopper Ball Valve

FT PQ        Pig Ball Valve

FT TQ        Top Entry Ball Valve

FT VQ        V-Type Ball Valve

FT UQ        Semi Ball Valve

FT KQ        Vacuum Ball Valve

Body Material                                                                                                    Delivery:  10 Weeks
Casting/Forging Code Material Grade   Casting/Forging Code Material Grade
 Casting WCB ASTM A216 WCB   Forging A105 ASTM A105
 Casting WC6 ASTM A217 WC6   Forging LF2 ASTM A350 LF2
Casting WC9 ASTM A217WC9   Forging F11 ASTM A182 F11
Casting C5 ASTM A216 C5   Forging F22 ASTM A182 F22
Casting C12 ASTM A217 C12   Forging F304 ASTM A182 F304
Casting LCB ASTM A352 LCB   Forging F316 ASTM A182 F316
Casting LCC ASTM A352 LCC   Forging F304L ASTM A182 F304L
Casting CF8 ASTM A351 CF8   Forging F316L ASTM A182 F316L
Casting CF8M ASTM A351 CF8M   Forging F321 ASTM A182 F321
Casting CF3 ASTM A351 CF3   Forging F347 ASTM A182 F347
Casting CF3M ASTM A351 CF3M   Forging F51 ASTM A182 F51
Casting CF8C ASTM A351 CF8C   Forging F53 ASTM A182 F53
Casting GR4A ASTM A890/890M 4A   Forging F55 ASTM A182 F55
Casting GR5A ASTM A890/890M 5A   Forging N04400 ASTM B564 UNS N04400
Casting GR6A ASTM A890/890M 6A   Forging N06625 ASTM B564 UNS N06625
Casting M35-1 ASTM A494 M35-1   Forging N10276 ASTM B564 UNS N10276
Casting CW6MC ASTM A494 CW6MC
Casting CW2M ASTM A494 CW2M
