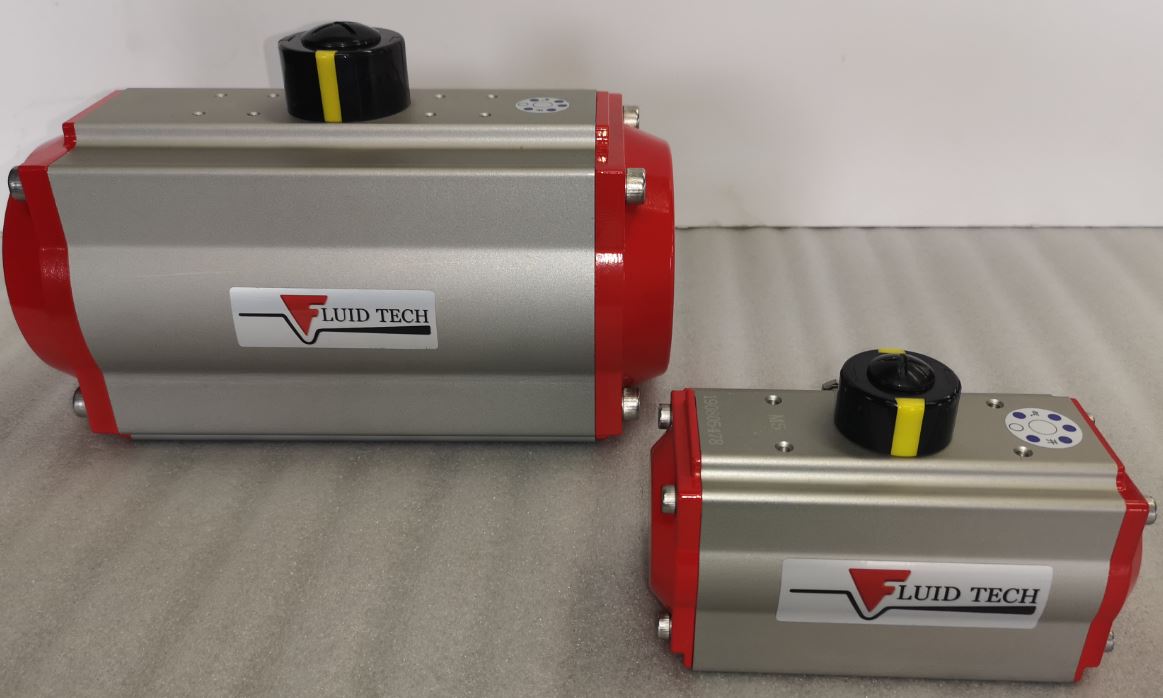

FT Rack & Pinion Actuators

Position Indicator

Position indicator with NAMUR is convenient for
mounting accessories such as Limit Switch boxes, Positioners etc.

Pinion
The pinion is high-precision and integrative,made from
nickell-alloy steel, conforms to the latest standards of
IS05211, DIN3337, and NAMUR. The dimensions can be customized.

Actuator Body ASTM600

According to different requirements, the extruded aluminum alloy

ASTM6005 Body can be treated with hard anodized, powder polyester

PTFE or Nickel plated.

Pistons

The twin rack pistons are made from die-casting aluminum
treated and hard anodized or made from cast steel galvanization.

Travel adjustment

The two independent external travel stop adjustment bolts
can adjust 5° at both open and close directions easily and
precisely.

High performance springs

Preloaded coated springs are made from high quality
materials for corrosion resistance and ensure longer service life.

Bearing & Guides
Made from low friction,long-life compound material,to avoid
the direct contact between metals. The maintenance and
replacement are easy and convenient.

O-Rings

Temperature conditions to use NBR: -20°C – +80°C

In High temperature conditions to useViton: -15°C – +150°C

In Low temperature conditions to use Silicone: -60°C – +80°C
